Thrust Ball Bearings

点击数:2059
产品类别: Products Trust Ball Bearings

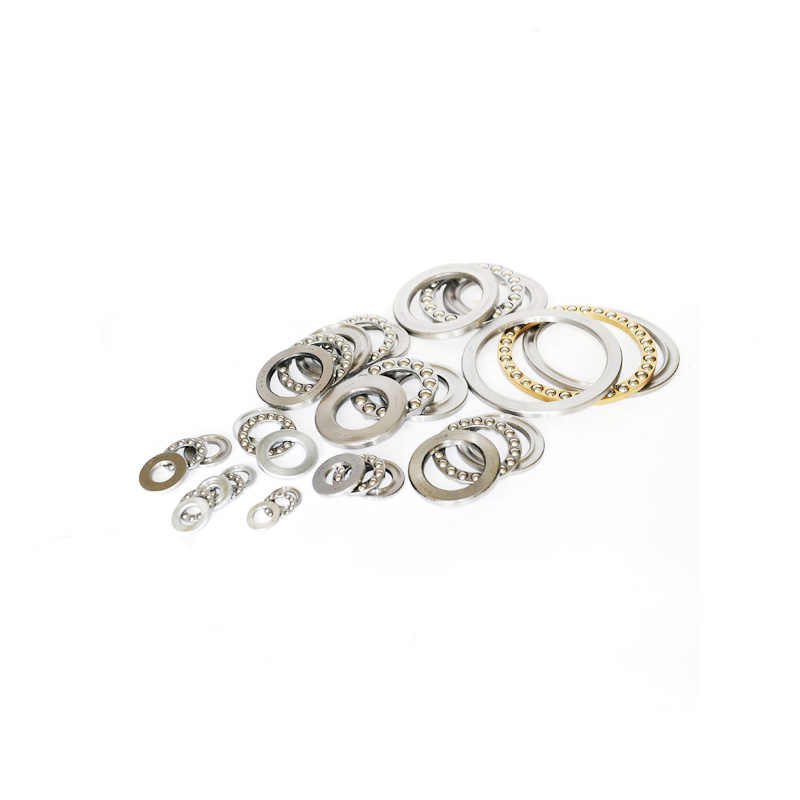

产品描述:Thrust Ball Bearing Thrust ball bearing consists of a shaft washer, a housing washer, and a steel ball with a cage. The shaft washer is used to fix the shaft, and the housing washer is used to fix the parts outside the shaft. Usually, the material of the two washers and balls is chromium steel, while the material of the cage is brass or stainless steel. Thrust ball bearings are widely used in crane hooks, vertical water pumps, vertical centrifuges, jacks, low-speed reducers, etc.

Part Number Raceway type bore diameter of shaft washer(d) outer diamter of housing washer(D) thickness(H) Balls Qty/pc Balls Size/mm Weight/g

F2-6 flat raceway 2 6 3 6 1 0.6

F2.5-6M groove raceway 2.5 6 3 6 1.2 0.8

F2.5-7 flat raceway 2.5 7 3.5 6 1.2 0.9

F2.5-7M groove raceway 2.5 7 3.5 7 1.3 0.8

F3-6M groove raceway 3 6 2.8 6 1 0.85

F3-8 flat raceway 3 8 3.5 6 1.588 0.6

F3-8M groove raceway 3 8 3.5 6 1.588 0.9

F4-8M groove raceway 4 8 3.3 7 1.3 0.9

F4-9 flat raceway 4 9 4 6 1.588 1.5

F4-9M groove raceway 4 9 4 6 1.588 1.2

F4-10 flat raceway 4 10 4 6 1.588 2

F4-10M groove raceway 4 10 4 6 1.588 1.5

F5-10M groove raceway 5 10 4 7 1.588 1.6

F5-11 flat raceway 5 11 4.5 7 1.588 2.4

F5-11M groove raceway 5 11 4.5 7 1.588 1.9

F5-12M groove raceway 5 12 4 7 1.588 2.1

F6-12 flat raceway 6 12 4.5 8 2 2.5

F6-12M groove raceway 6 12 4.5 8 2 2.2

F6-14M groove raceway 6 14 5 8 2.381 3.5

F7-13M groove raceway 7 13 4.5 9 2 2.6

F7-15 flat raceway 7 15 5 8 2.5 4.4

F7-15M groove raceway 7 15 5 8 2.5 4.3

F7-17M groove raceway 7 17 6 8 2.381 6.5

F8-16 flat raceway 8 16 5 9 3 5

F8-16M groove raceway 8 16 5 9 3 4.5

F8-19M groove raceway 8 19 7 8 3.175 9.1

F9-17 flat raceway 9 17 5 10 2.381 5.1

F9-20M groove raceway 9 20 7 8 3.175 9.9

F10-18 flat raceway 10 18 5.5 10 2.381 6

F10-18M groove raceway 10 18 5.5 10 2.381 5.4

Stainless Steel Bearings

Part Number	Raceway type	bore diameter of shaft washer(d)	outer diamter of housing washer(D)	thickness(H)	Balls Qty/pc	Balls Size/mm	Weight/g
F2-6	flat raceway	2	6	3	6	1	0.6
F2.5-6M	groove raceway	2.5	6	3	6	1.2	0.8
F2.5-7	flat raceway	2.5	7	3.5	6	1.2	0.9
F2.5-7M	groove raceway	2.5	7	3.5	7	1.3	0.8
F3-6M	groove raceway	3	6	2.8	6	1	0.85
F3-8	flat raceway	3	8	3.5	6	1.588	0.6
F3-8M	groove raceway	3	8	3.5	6	1.588	0.9
F4-8M	groove raceway	4	8	3.3	7	1.3	0.9
F4-9	flat raceway	4	9	4	6	1.588	1.5
F4-9M	groove raceway	4	9	4	6	1.588	1.2
F4-10	flat raceway	4	10	4	6	1.588	2
F4-10M	groove raceway	4	10	4	6	1.588	1.5
F5-10M	groove raceway	5	10	4	7	1.588	1.6
F5-11	flat raceway	5	11	4.5	7	1.588	2.4
F5-11M	groove raceway	5	11	4.5	7	1.588	1.9
F5-12M	groove raceway	5	12	4	7	1.588	2.1
F6-12	flat raceway	6	12	4.5	8	2	2.5
F6-12M	groove raceway	6	12	4.5	8	2	2.2
F6-14M	groove raceway	6	14	5	8	2.381	3.5
F7-13M	groove raceway	7	13	4.5	9	2	2.6
F7-15	flat raceway	7	15	5	8	2.5	4.4
F7-15M	groove raceway	7	15	5	8	2.5	4.3
F7-17M	groove raceway	7	17	6	8	2.381	6.5
F8-16	flat raceway	8	16	5	9	3	5
F8-16M	groove raceway	8	16	5	9	3	4.5
F8-19M	groove raceway	8	19	7	8	3.175	9.1
F9-17	flat raceway	9	17	5	10	2.381	5.1
F9-20M	groove raceway	9	20	7	8	3.175	9.9
F10-18	flat raceway	10	18	5.5	10	2.381	6
F10-18M	groove raceway	10	18	5.5	10	2.381	5.4
