Dental Bearings
  • 点击数:890
  • 产品类别: Products Dental Bearings

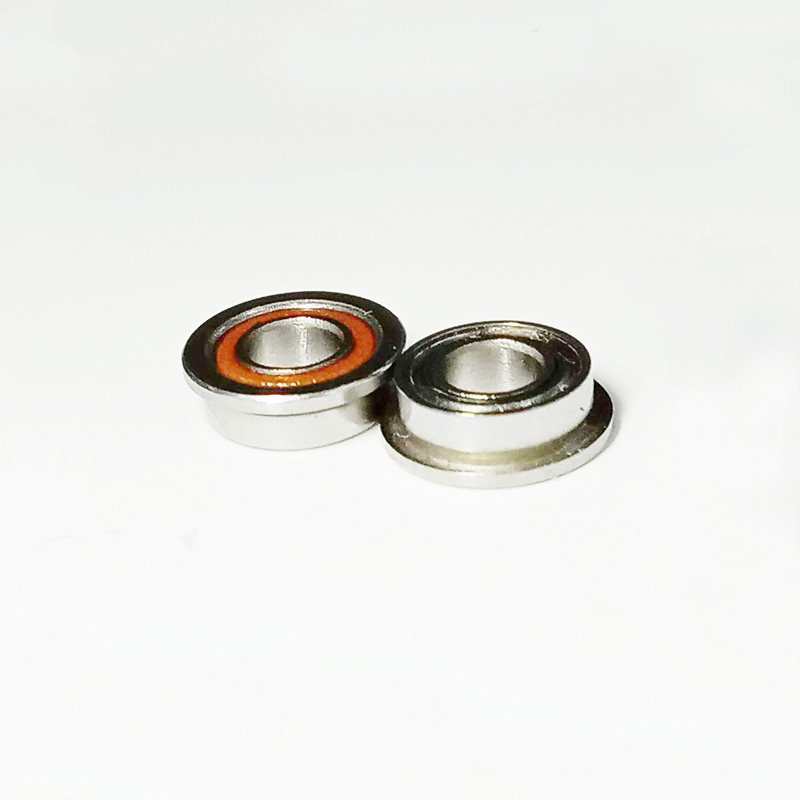

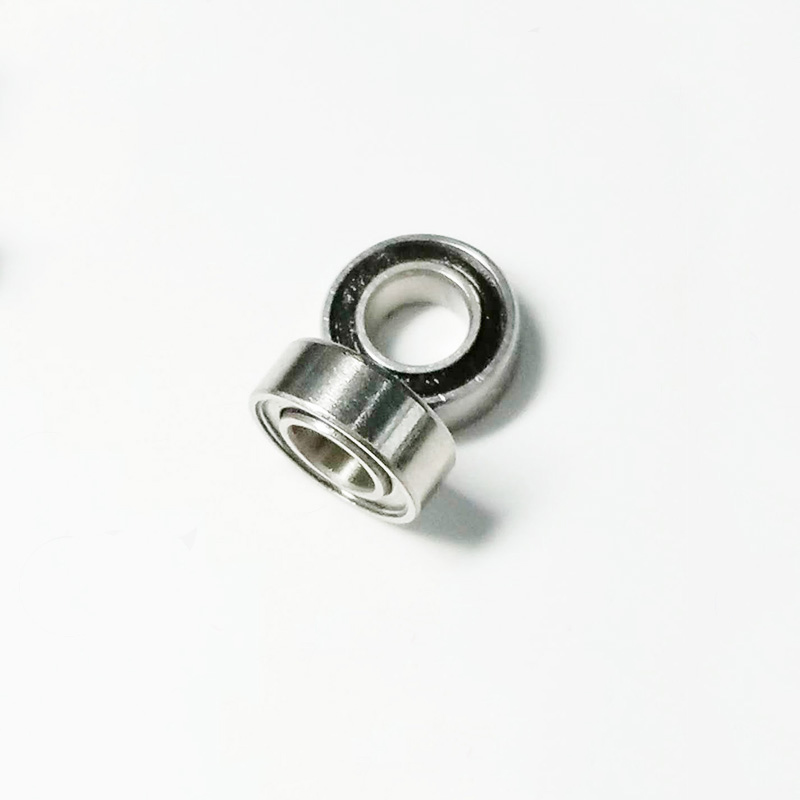

  • 产品描述:Dental Bearing Dental bearings are high-speed micro bearings used for dental turbines. The inner and outer rings of dental bearings are made of refined 440 stainless steel, the balls are made of high-precision stainless steel (440) or ceramic (Si3N4) according to requirements, and the cage is made of reinforced phenolic resin (TORLON) or phenolic resin (PEEK). The accuracy tolerance of dental bearings is ABEC-7 (P4). At a pressure of 200-250kpa, the rotational speed of dental bearings can reach 350000-45000rpm
 [←]  Ceramic Bearings
 [→]  Thrust Ball Bearings

  • Model sealing form inner diameter (d) outside diameter (D) width (B) Remarks
    SR144TL OPEN 3.175 6.35 2.38 STEEL BALLS
    SR144TLN OPEN 3.175 6.35 2.38 CERAMIC BALLS
    SR144TLW OPEN 3.175 6.35 2.78 STEEL BALLS
    SR144TLWN OPEN 3.175 6.35 2.78 CERAMIC BALLS
    SR144TLZ Single shield 3.175 6.35 2.38 STEEL BALLS
    SR144TLZN Single shield 3.175 6.35 2.38 CERAMIC BALLS
    SR144TLZW Single shield 3.175 6.35 2.78 STEEL BALLS
    SR144TLZWN Single shield 3.175 6.35 2.78 CERAMIC BALLS
    SR144TLZ1 Single integral shieldral shield 3.175 6.35 2.38 STEEL BALLS
    SR144TLZ1N Single integral shieldral shield 3.175 6.35 2.38 CERAMIC BALLS
    SR144TLZ1W Single integral shieldral shield 3.175 6.35 2.78 STEEL BALLS
    SR144TLZ1WN Single integral shieldral shield 3.175 6.35 2.78 CERAMIC BALLS
    SR144K1TL OPEN 3.175 6.35 2.38 steel balls,separable inner ring
    SR144K1TLN OPEN 3.175 6.35 2.38 ceramic balls,separable inner ring
    SR144K1TLW OPEN 3.175 6.35 2.78 steel balls,separable inner ring
    SR144K1TLWN OPEN 3.175 6.35 2.78 ceramic balls,separable inner ring
    SR144K1TLZ Single shield 3.175 6.35 2.38 steel balls,separable inner ring
    SR144K1TLZN Single shield 3.175 6.35 2.38 ceramic balls,separable inner ring
    SR144K1TLWZ Single shield 3.175 6.35 2.78 steel balls,separable inner ring
    SR144K1TLWZN Single shield 3.175 6.35 2.78 ceramic balls,separable inner ring
    SR144K1TLZ1 Single integral shieldral shield 3.175 6.35 2.38 steel balls,separable inner ring
    SR144K1TLZ1N Single integral shieldral shield 3.175 6.35 2.38 ceramic balls,separable inner ring
    SR144K1TLWZ1 Single integral shieldral shield 3.175 6.35 2.78 steel balls,separable inner ring
    SR144K1TLWZ1N Single integral shieldral shield 3.175 6.35 2.78 ceramic balls,separable inner ring
    SR144K1TLW02 OPEN 3.175 6.35 2.38/2.78 steel balls,separable inner ring,extended outer ring
    SR144K1TLW02N OPEN 3.175 6.35 2.38/2.78 ceramic balls,separable inner ring,extended outer ring
    SR144K1TLZ1W02 Single integral shieldral shield 3.175 6.35 2.38 steel balls,separable inner ring,extended outer ring
    SR144K1TLZ1W02N Single integral shieldral shield 3.175 6.35 2.38 ceramic balls,separable inner ring,extended outer ring
    SR144K2TL OPEN 3.175 6.35 2.38 steel balls,separable outer ring
    SR144K2TLN OPEN 3.175 6.35 2.38 ceramic balls,separable outer ring
    SR144K2TLW OPEN 3.175 6.35 2.78 steel balls,separable outer ring
    SR144K2TLWN OPEN 3.175 6.35 2.78 ceramic balls,separable outer ring
    SR144K2TLZ Single shield 3.175 6.35 2.38 steel balls,separable outer ring
    SR144K2TLZN Single shield 3.175 6.35 2.38 ceramic balls,separable outer ring
    SR144K2TLWZ Single shield 3.175 6.35 2.78 steel balls,separable outer ring
    SR144K2TLWZN Single shield 3.175 6.35 2.78 ceramic balls,separable outer ring
    SR144K2TLZ1 Single integral shieldral shield 3.175 6.35 2.38 steel balls,separable outer ring
    SR144K2TLZ1N Single integral shieldral shield 3.175 6.35 2.38 ceramic balls,separable outer ring
    SR144K2TLWZ1 Single integral shieldral shield 3.175 6.35 2.78 steel balls,separable outer ring
    SR144K2TLWZ1N Single integral shieldral shield 3.175 6.35 2.78 ceramic balls,separable outer ring
    SR144K2TLW02 OPEN 3.175 6.35 2.38/2.78 steel balls,separable outer ring,extended outer ring
    SR144K2TLW02N OPEN 3.175 6.35 2.38/2.78 ceramic balls,separable outer ring,extended outer ring
    SR144K2TLZ1W02 Single integral shieldral shield 3.175 6.35 2.38 steel balls,separable outer ring,extended outer ring
    SR144K2TLZ1W02N Single integral shieldral shield 3.175 6.35 2.38 ceramic balls,separable outer ring,extended outer ring
    SFR144TLZ Single shield 3.175 6.35 2.38 STEEL BALLS
    SFR144TLZN Single shield 3.175 6.35 2.38 CERAMIC BALLS
    SFR144TLZW Single shield 3.175 6.35 2.78 STEEL BALLS
    SFR144TLZWN Single shield 3.175 6.35 2.78 CERAMIC BALLS
    SFR144TLZ1 Single integral shieldral shield 3.175 6.35 2.38 STEEL BALLS
    SFR144TLZ1N Single integral shieldral shield 3.175 6.35 2.38 CERAMIC BALLS
    SFR144TLZ1W Single integral shieldral shield 3.175 6.35 2.78 STEEL BALLS
    SFR144TLZ1WN Single integral shieldral shield 3.175 6.35 2.78 CERAMIC BALLS
    SFR144K1TLZ Single shield 3.175 6.35 2.38 steel balls,separable inner ring
    SFR144K1TLZN Single shield 3.175 6.35 2.38 ceramic balls,separable inner ring
    SFR144K1TLWZ Single shield 3.175 6.35 2.78 steel balls,separable inner ring
    SFR144K1TLWZN Single shield 3.175 6.35 2.78 ceramic balls,separable inner ring
    SFR144K1TLZ1 Single integral shieldral shield 3.175 6.35 2.38 steel balls,separable inner ring
    SFR144K1TLZ1N Single integral shieldral shield 3.175 6.35 2.38 ceramic balls,separable inner ring
    SFR144K1TLWZ1 Single integral shieldral shield 3.175 6.35 2.78 steel balls,separable inner ring
    SFR144K1TLWZ1N Single integral shieldral shield 3.175 6.35 2.78 ceramic balls,separable inner ring
    SFR144K2TLZ Single shield 3.175 6.35 2.38 steel balls,separable outer ring
    SFR144K2TLZN Single shield 3.175 6.35 2.38 ceramic balls,separable outer ring
    SFR144K2TLWZ Single shield 3.175 6.35 2.78 steel balls,separable outer ring
    SFR144K2TLWZN Single shield 3.175 6.35 2.78 ceramic balls,separable outer ring
    SFR144K2TLZ1 Single integral shieldral shield 3.175 6.35 2.38 steel balls,separable outer ring
    SFR144K2TLZ1N Single integral shieldral shield 3.175 6.35 2.38 ceramic balls,separable outer ring
    SFR144K2TLWZ1 Single integral shieldral shield 3.175 6.35 2.78 steel balls,separable outer ring
    SFR144K2TLWZ1N Single integral shieldral shield 3.175 6.35 2.78 ceramic balls,separable outer ring
