Dental Bearings

点击数:891
产品类别: Products Dental Bearings

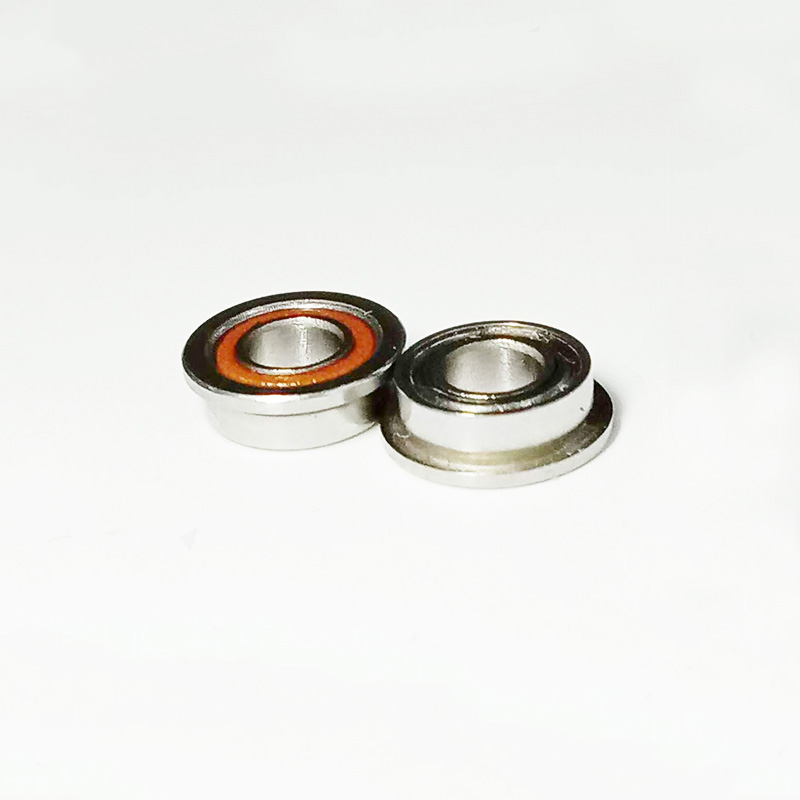

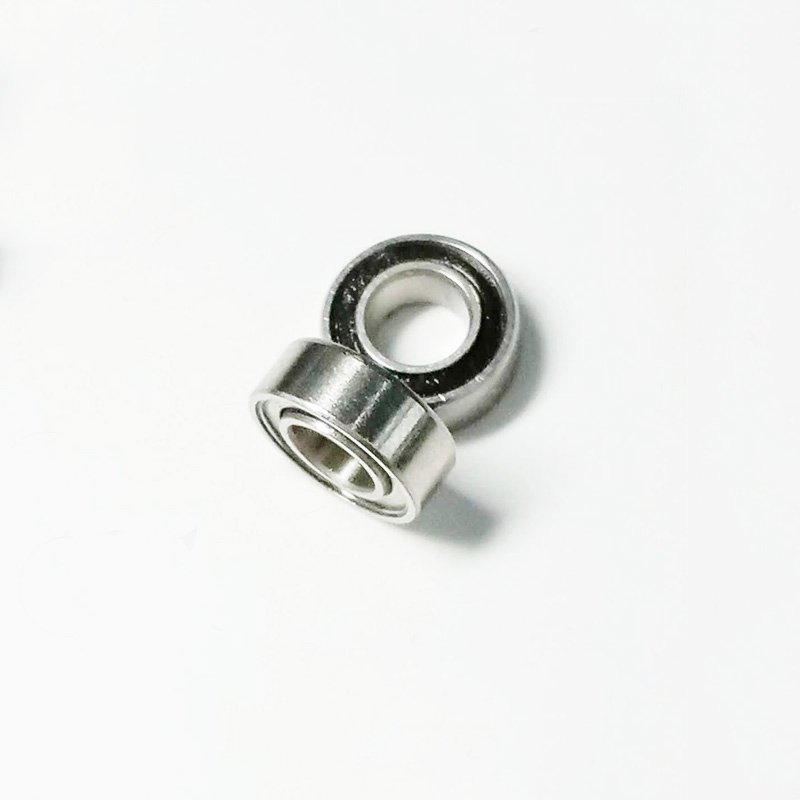

产品描述:Dental Bearing Dental bearings are high-speed micro bearings used for dental turbines. The inner and outer rings of dental bearings are made of refined 440 stainless steel, the balls are made of high-precision stainless steel (440) or ceramic (Si3N4) according to requirements, and the cage is made of reinforced phenolic resin (TORLON) or phenolic resin (PEEK). The accuracy tolerance of dental bearings is ABEC-7 (P4). At a pressure of 200-250kpa, the rotational speed of dental bearings can reach 350000-45000rpm

产品详情

Model

sealing form

inner diameter (d)

outside diameter (D)

width (B)

Remarks

SR144TL	OPEN	3.175	6.35	2.38	STEEL BALLS
SR144TLN	OPEN	3.175	6.35	2.38	CERAMIC BALLS
SR144TLW	OPEN	3.175	6.35	2.78	STEEL BALLS
SR144TLWN	OPEN	3.175	6.35	2.78	CERAMIC BALLS
SR144TLZ	Single shield	3.175	6.35	2.38	STEEL BALLS
SR144TLZN	Single shield	3.175	6.35	2.38	CERAMIC BALLS
SR144TLZW	Single shield	3.175	6.35	2.78	STEEL BALLS
SR144TLZWN	Single shield	3.175	6.35	2.78	CERAMIC BALLS
SR144TLZ1	Single integral shieldral shield	3.175	6.35	2.38	STEEL BALLS
SR144TLZ1N	Single integral shieldral shield	3.175	6.35	2.38	CERAMIC BALLS
SR144TLZ1W	Single integral shieldral shield	3.175	6.35	2.78	STEEL BALLS
SR144TLZ1WN	Single integral shieldral shield	3.175	6.35	2.78	CERAMIC BALLS
SR144K1TL	OPEN	3.175	6.35	2.38	steel balls,separable inner ring
SR144K1TLN	OPEN	3.175	6.35	2.38	ceramic balls,separable inner ring
SR144K1TLW	OPEN	3.175	6.35	2.78	steel balls,separable inner ring
SR144K1TLWN	OPEN	3.175	6.35	2.78	ceramic balls,separable inner ring
SR144K1TLZ	Single shield	3.175	6.35	2.38	steel balls,separable inner ring
SR144K1TLZN	Single shield	3.175	6.35	2.38	ceramic balls,separable inner ring
SR144K1TLWZ	Single shield	3.175	6.35	2.78	steel balls,separable inner ring
SR144K1TLWZN	Single shield	3.175	6.35	2.78	ceramic balls,separable inner ring
SR144K1TLZ1	Single integral shieldral shield	3.175	6.35	2.38	steel balls,separable inner ring
SR144K1TLZ1N	Single integral shieldral shield	3.175	6.35	2.38	ceramic balls,separable inner ring
SR144K1TLWZ1	Single integral shieldral shield	3.175	6.35	2.78	steel balls,separable inner ring
SR144K1TLWZ1N	Single integral shieldral shield	3.175	6.35	2.78	ceramic balls,separable inner ring
SR144K1TLW02	OPEN	3.175	6.35	2.38/2.78	steel balls,separable inner ring,extended outer ring
SR144K1TLW02N	OPEN	3.175	6.35	2.38/2.78	ceramic balls,separable inner ring,extended outer ring
SR144K1TLZ1W02	Single integral shieldral shield	3.175	6.35	2.38	steel balls,separable inner ring,extended outer ring
SR144K1TLZ1W02N	Single integral shieldral shield	3.175	6.35	2.38	ceramic balls,separable inner ring,extended outer ring
SR144K2TL	OPEN	3.175	6.35	2.38	steel balls,separable outer ring
SR144K2TLN	OPEN	3.175	6.35	2.38	ceramic balls,separable outer ring
SR144K2TLW	OPEN	3.175	6.35	2.78	steel balls,separable outer ring
SR144K2TLWN	OPEN	3.175	6.35	2.78	ceramic balls,separable outer ring
SR144K2TLZ	Single shield	3.175	6.35	2.38	steel balls,separable outer ring
SR144K2TLZN	Single shield	3.175	6.35	2.38	ceramic balls,separable outer ring
SR144K2TLWZ	Single shield	3.175	6.35	2.78	steel balls,separable outer ring
SR144K2TLWZN	Single shield	3.175	6.35	2.78	ceramic balls,separable outer ring
SR144K2TLZ1	Single integral shieldral shield	3.175	6.35	2.38	steel balls,separable outer ring
SR144K2TLZ1N	Single integral shieldral shield	3.175	6.35	2.38	ceramic balls,separable outer ring
SR144K2TLWZ1	Single integral shieldral shield	3.175	6.35	2.78	steel balls,separable outer ring
SR144K2TLWZ1N	Single integral shieldral shield	3.175	6.35	2.78	ceramic balls,separable outer ring
SR144K2TLW02	OPEN	3.175	6.35	2.38/2.78	steel balls,separable outer ring,extended outer ring
SR144K2TLW02N	OPEN	3.175	6.35	2.38/2.78	ceramic balls,separable outer ring,extended outer ring
SR144K2TLZ1W02	Single integral shieldral shield	3.175	6.35	2.38	steel balls,separable outer ring,extended outer ring
SR144K2TLZ1W02N	Single integral shieldral shield	3.175	6.35	2.38	ceramic balls,separable outer ring,extended outer ring
SFR144TLZ	Single shield	3.175	6.35	2.38	STEEL BALLS
SFR144TLZN	Single shield	3.175	6.35	2.38	CERAMIC BALLS
SFR144TLZW	Single shield	3.175	6.35	2.78	STEEL BALLS
SFR144TLZWN	Single shield	3.175	6.35	2.78	CERAMIC BALLS
SFR144TLZ1	Single integral shieldral shield	3.175	6.35	2.38	STEEL BALLS
SFR144TLZ1N	Single integral shieldral shield	3.175	6.35	2.38	CERAMIC BALLS
SFR144TLZ1W	Single integral shieldral shield	3.175	6.35	2.78	STEEL BALLS
SFR144TLZ1WN	Single integral shieldral shield	3.175	6.35	2.78	CERAMIC BALLS
SFR144K1TLZ	Single shield	3.175	6.35	2.38	steel balls,separable inner ring
SFR144K1TLZN	Single shield	3.175	6.35	2.38	ceramic balls,separable inner ring
SFR144K1TLWZ	Single shield	3.175	6.35	2.78	steel balls,separable inner ring
SFR144K1TLWZN	Single shield	3.175	6.35	2.78	ceramic balls,separable inner ring
SFR144K1TLZ1	Single integral shieldral shield	3.175	6.35	2.38	steel balls,separable inner ring
SFR144K1TLZ1N	Single integral shieldral shield	3.175	6.35	2.38	ceramic balls,separable inner ring
SFR144K1TLWZ1	Single integral shieldral shield	3.175	6.35	2.78	steel balls,separable inner ring
SFR144K1TLWZ1N	Single integral shieldral shield	3.175	6.35	2.78	ceramic balls,separable inner ring
SFR144K2TLZ	Single shield	3.175	6.35	2.38	steel balls,separable outer ring
SFR144K2TLZN	Single shield	3.175	6.35	2.38	ceramic balls,separable outer ring
SFR144K2TLWZ	Single shield	3.175	6.35	2.78	steel balls,separable outer ring
SFR144K2TLWZN	Single shield	3.175	6.35	2.78	ceramic balls,separable outer ring
SFR144K2TLZ1	Single integral shieldral shield	3.175	6.35	2.38	steel balls,separable outer ring
SFR144K2TLZ1N	Single integral shieldral shield	3.175	6.35	2.38	ceramic balls,separable outer ring
SFR144K2TLWZ1	Single integral shieldral shield	3.175	6.35	2.78	steel balls,separable outer ring
SFR144K2TLWZ1N	Single integral shieldral shield	3.175	6.35	2.78	ceramic balls,separable outer ring
